Fender Twin Amp

In plain English how to adjust the bias

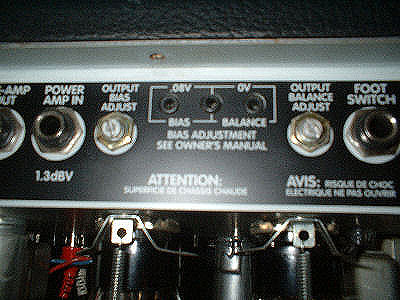

The following applies to the current range of Fender amps with bias adjustment points on the rear panel of the amplifier.  There is no need to remove the chassis for this procedure.

Fender obviously consider this job to be well within the scope of the average owner, because the adjustments and test points are mounted on the outside rear of the chassis. And detailed instructions of how to do it are in the owners manual. Fantastic, clear as mud, if only the instructions made sense!

Now, I am from the U.K. West Country, Devon, just over the Somerset boarder. And contrary to popular belief, we don’t all drive tractors, combine harvesters, and dig Swedes. Only the minority do that, the rest of us are not that bright!  So even I had trouble getting my head round Fender's instructions of how to set the bias on this type of amp.   Here is my version of how you do it.

First I will say, though very simple, the adjustments are very precise, the tiniest amount of adjustment to the trimmers will make a considerable difference to the readings you will see on your meter.

You can not do this job by what you hear, or by pot-uck. Even I can’t do that.

You will need at least to have access to a volt meter, or a multimeter with a DC voltage range.

You can buy one like I am using here for about ten or twelve pounds. No need to pay a fortune, I buy them two at a time as I manage to destroy one at least every three months!

So make sure the leads are in the right place when dealing with high voltages.

Secondly, the voltages you will be dealing with while making this adjustment are less than 1 volt.  There is nothing you can do here that will cause you any harm, except burn your fingers on the hot valves, or break your back lifting the damn thing.

Now for the Devonshire procedure to set your bias.

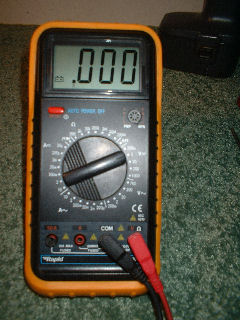

1. Set your meter to 2 volts on the D.C. scale. Make sure the leads are correctly fitted to the meter to take voltage readings
Text Box: 1. Set your meter to 2 volts on the D.C. scale. Make sure the leads are correctly fitted to the meter to take voltage readings

2. Turn on the amp and let it warm up for a while, 4 or 5 minuets, both mains and standby switches on.

Set power switch to high, nothing plugged in to the input. Turn all gain and volume controls down to 1.  If your amp has vibrato set both speed and intensity to 1. Foot switch unplugged.  Reverb down to 1.

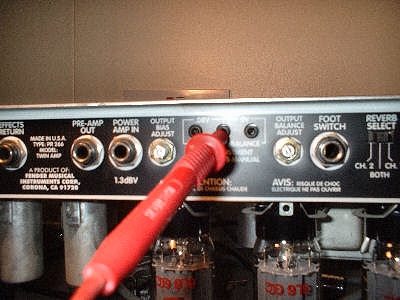

3. Now stick the red lead into the middle test hole and leave it in there.
Text Box: 3. Now stick the red lead into the middle test hole and leave it in there.

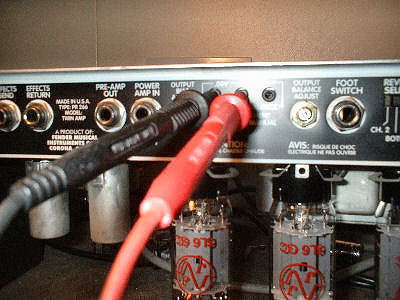

Stick the black one into the hole marked BIAS .08V read what you have on the meter, and adjust the trim pot marked "OUTPUT BIAS ADJUST" until your meter reads .080 volts.  If you have the version with a deeper chassis 4 extra screws in the top as well as the usual 2 nickel straps, and has screws in the side of the cab, the setting will be 0.6 volts.  The procedure is otherwise exactly the same.  I will cover a service issue with this model soon.
Text Box: Stick the black one into the hole marked BIAS .08V read what you have on the meter, and adjust the trim pot marked "OUTPUT BIAS ADJUST" until your meter reads .080 volts.  If you have the version with a deeper chassis 4 extra screws in the top as well as the usual 2 nickel straps, and has screws in the side of the cab, the setting will be 0.6 volts.  The procedure is otherwise exactly the same.  I will cover a service issue with this model soon.

Adjust to .08 volts or what is written on the panel

Black probe & screwdriver not too clear due to dark background

Text Box: Adjust to .08 volts or what is written on the panel
Black probe & screwdriver not too clear due to dark background

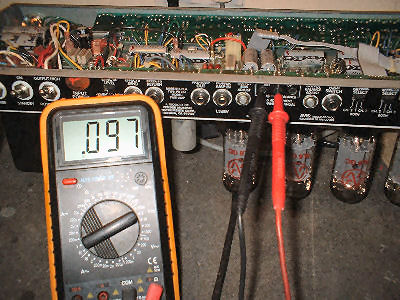

Before adjustment, this one was .097 volts
Text Box: Before adjustment, this one was .097 volts

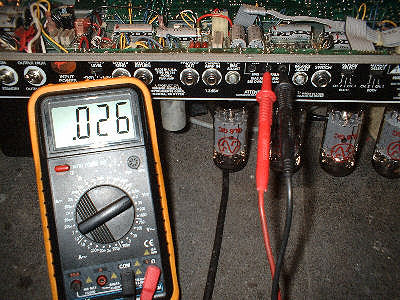

4. That was easy so, now pull out the black lead and stick it in the hole on the right marked "BALANCE 0V "

Observe the meter reading, in this case .026



Text Box: 4. That was easy so, now pull out the black lead and stick it in the hole on the right marked "BALANCE 0V "
Observe the meter reading, in this case .026

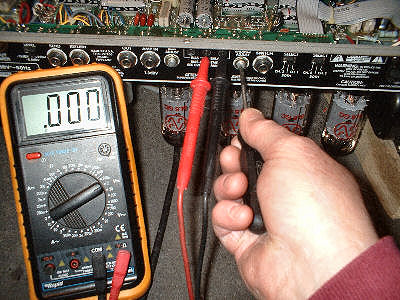

now adjust the OUTPUT BALANCE trim pot until your meter reads  .000
Text Box: now adjust the OUTPUT BALANCE trim pot until your meter reads  .000



5. Let the amp settle, check again, and repeat the whole adjustment procedure if required.

That’s all there is to it, your amp bias is now correctly set.  If you are unable to obtain those readings you may have faulty or out of spec valves, or a problem with the amp that needs attention.

It is not important which lead you stick in the middle hole, Red or Black, the readings will be the same.  But if you stick the black one in the middle you will see a Negative sign --  on the left side of the meter's display.

I have come across afew issues with both versions of this amp and will add a feature dealing with them at a later date.  There are a few separate problems individual to each version.

I hope you found this article useful, but please, don't blame me if you blow your amp up, I accept no responsibility, cause I'm vrum Devon!!!
